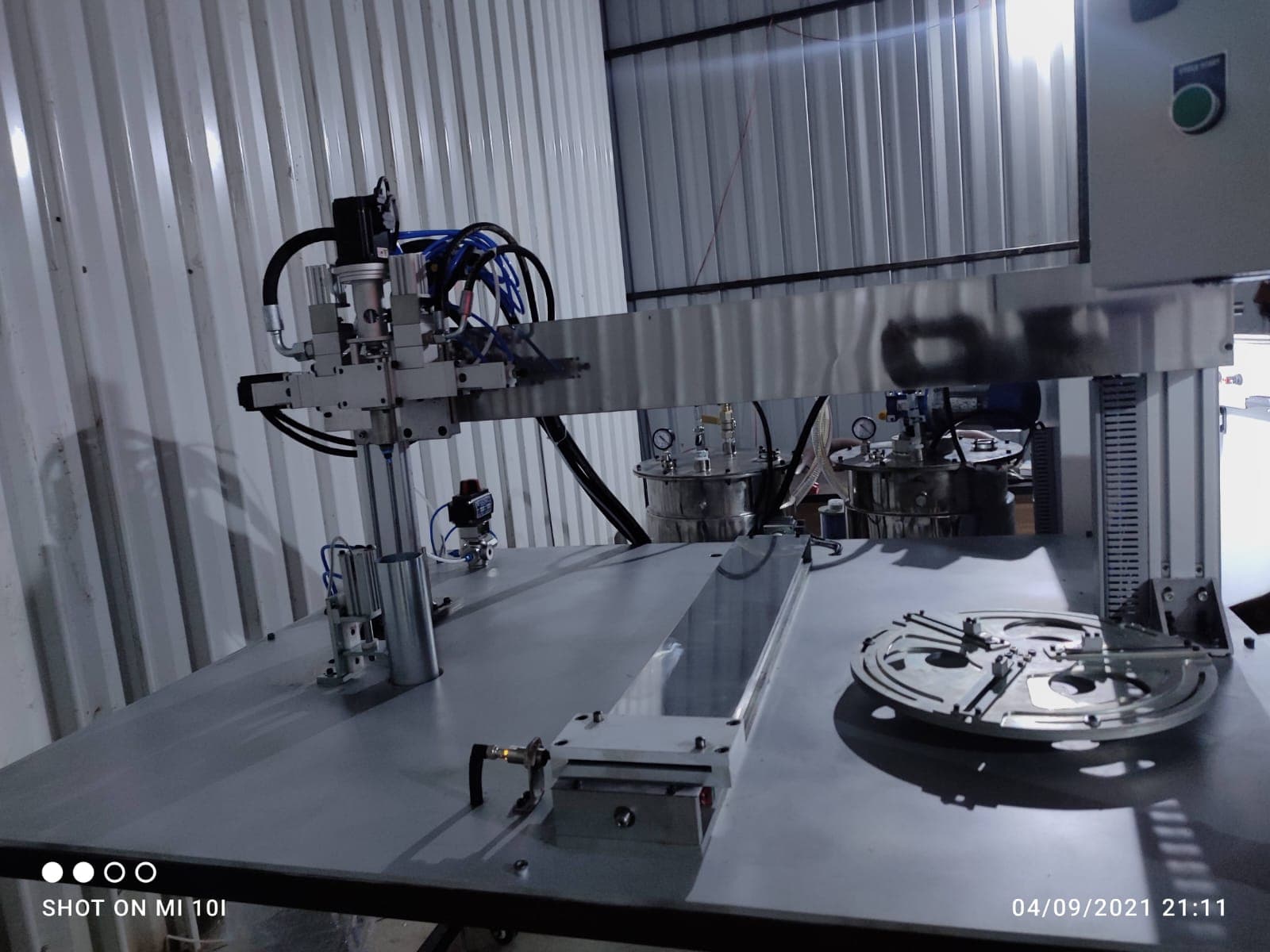

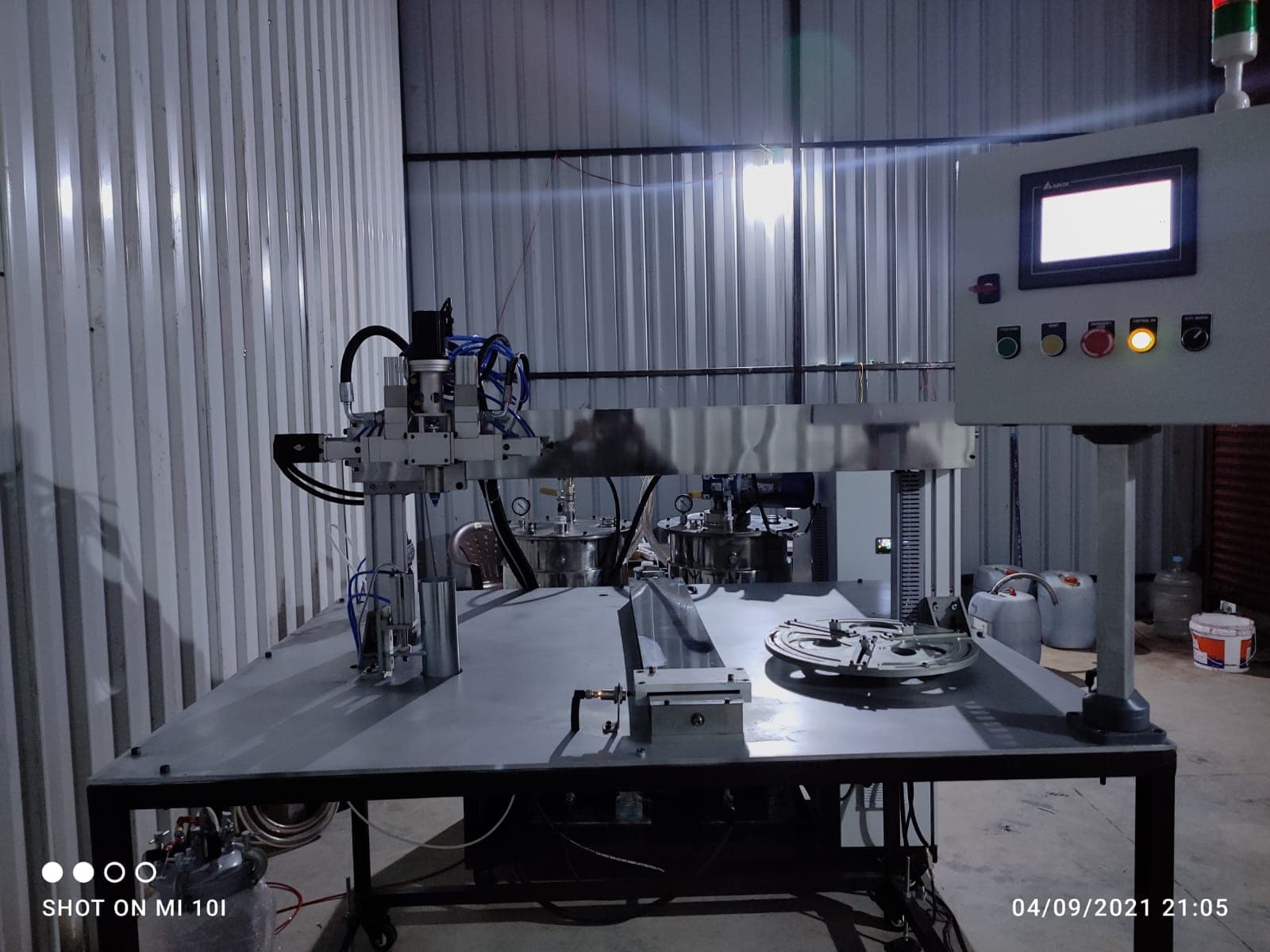

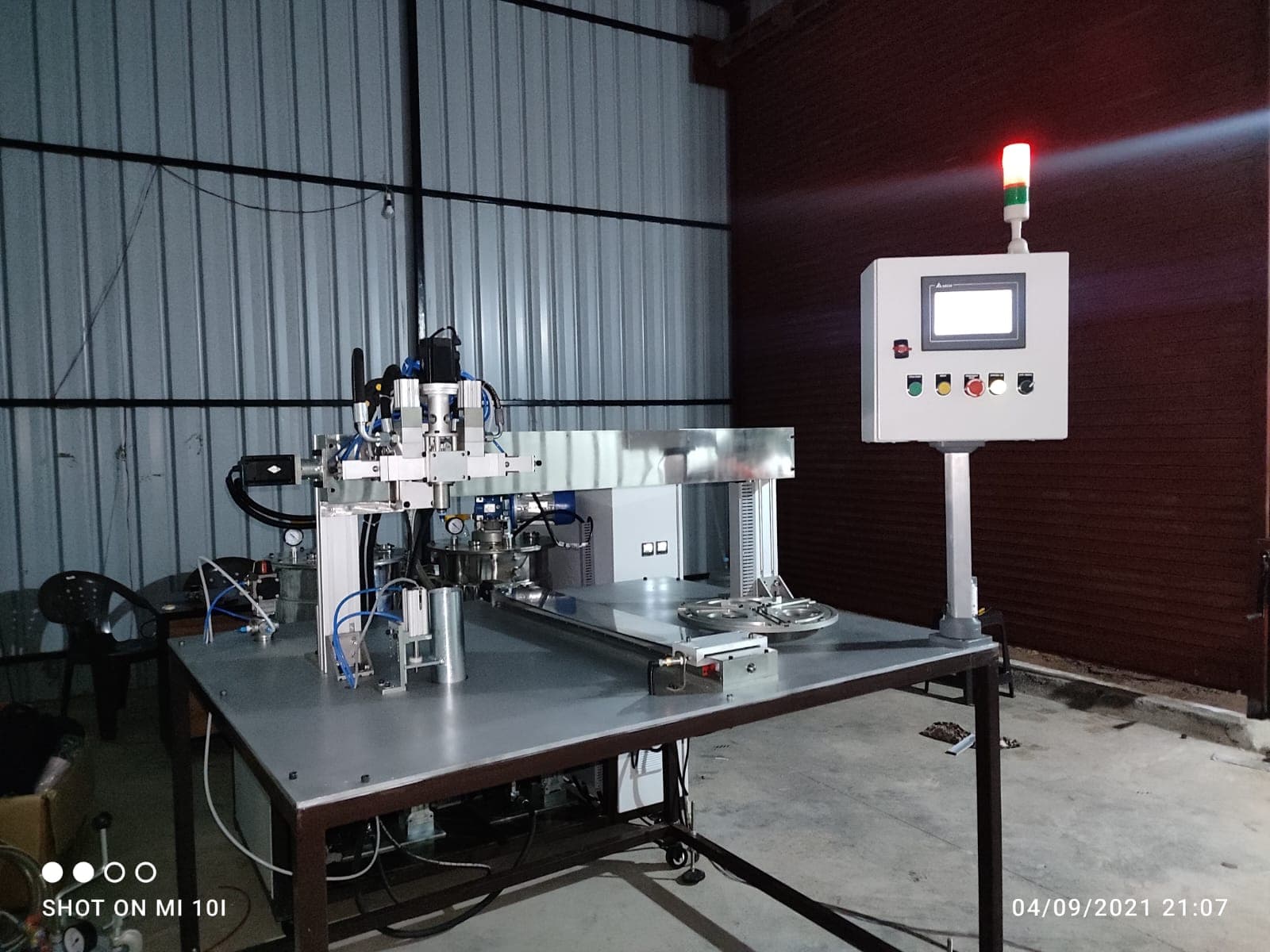

PU Dispensing
Advanced polyurethane dispensing equipment designed for precise metering, variable ratio control, and clean dispensing under vacuum conditions.
Choose Variant
Base PU dispensing system with 2 tank configuration, PCP pump, and manual ratio setup. Ideal for entry‑level polyurethane applications.
₹4,50,000.00
Key Features
- •2/3/4 Tank System for flexible material supply
- •Optional Tank Level Sensor and Flow Sensor
- •Single or Multi-Head Dispensing capability
- •Available with both PCP and gear pump configurations
- •Variable Flow Rate from 0.5 g/sec to 70 g/sec
- •Variable Ratio Machine suitable for material changeover
- •Non-Drip Dispensing Gun for clean cut-off
- •Under vacuum dispensing for bubble-free results
- •Precise Temperature Control for consistent material properties
- •Optional Digital Pressure Sensor for material pressure monitoring
Benefits
- Accurate polyurethane dosing reduces waste and improves quality
- Flexible tank and pump configurations adapt to production needs
- Vacuum dispensing ensures void-free potting and encapsulation
- Cleaner production with non-drip dispensing gun
- Scalable throughput from lab to industrial production
Applications
Automotive component sealing and bondingElectronics potting and encapsulationLED and lighting assemblyFurniture and woodworking adhesivesIndustrial gasketing and sealing
Technical Specifications
- Tank Configuration
- 2 tank system
- Flow Rate
- 0.5 g/sec – 40 g/sec
- Pump Options
- PCP pump
- Dispensing Heads
- Single or multi-head
- Ratio Control
- Manual adjustment
- Dispense Gun
- Non-drip gun with adjustable cut-off
- Vacuum Capability
- Under vacuum dispensing supported
- Temperature Control
- Precise monitoring and PID control
- Sensors
- Optional tank level sensor
- Power
- 110–240V AC
- Weight
- Approx. 50 kg (model dependent)
- Footprint
- Approx. 700 × 600 × 1300 mm
Technical specifications available on request. Custom configurations can be developed as per material viscosity and production requirements.
