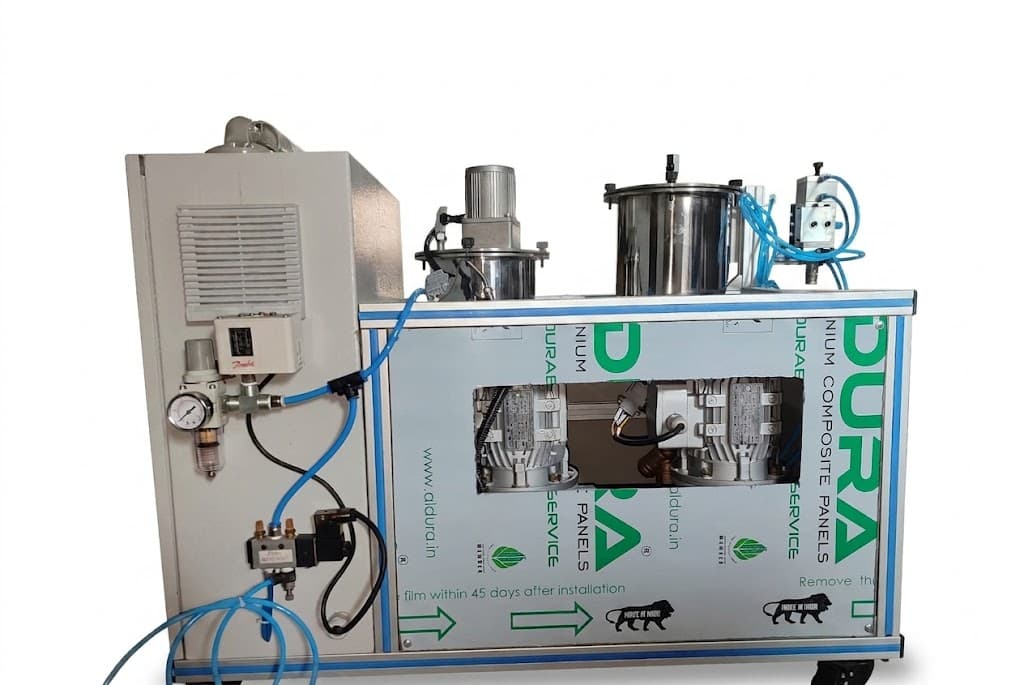

Epoxy Dispensing
High-precision two component dispensing system with dynamic mixing, variable ratio control, and integrated temperature management for demanding industrial production.
Choose Variant
Base model with 2 tank system and manual ratio setup
Contact sales for pricing
Key Features
- •2/3 Tank System for flexible material supply
- •Optional Chiller integrated with machine for temperature sensitive materials
- •Dynamic Mixer with X direction movement for improved flashing and homogeneity
- •Precise Metering Pumps for accurate component dosing
- •Variable Flow Rate from 5 g/sec to 50 g/sec
- •Variable Ratio capability for fast material changeover
- •Non Drip Dispensing Gun for clean cut-off
- •Inbuilt Temperature Monitoring and Control via PLC
- •Precise Temperature Control for consistent material properties
- •Optional Digital Pressure Sensor for material pressure monitoring
Benefits
- Accurate two-part mixing reduces rework and scrap
- Faster changeovers and flexible production ratios
- Improved process control with temperature and pressure feedback
- Cleaner production with n on-drip dispensing gun
- Scalable throughput from lab to production with 5–50 g/sec flow range
Applications
Potting and encapsulation in electronicsAdhesive dispensing in automotive assemblyTwo-part resin dosing for LED and lightingSealant and gasket dispensing in packagingMedical device assembly requiring precise two-part mixesComposite bonding in furniture and industrial components
Technical Specifications
- Tank Configuration
- 2 or 3 tank options
- Flow Rate
- 5 g/sec – 50 g/sec (variable)
- Metering Accuracy
- ±0.5% typical
- Mixing Motion
- Dynamic mixer with X axis movement
- Ratio Control
- Variable ratio, software configurable
- Temperature Control
- Inbuilt PLC temperature monitoring and PID control
- Chiller
- Optional integrated chiller available
- Pressure Monitoring
- Optional digital pressure sensor
- Dispense Gun
- Non-drip gun with adjustable cut-off
- Power
- 110–240V AC
- Weight
- Approx. 45 kg (model dependent)
- Footprint
- Approx. 600 × 500 × 1200 mm
Technical specifications available on request. Custom configurations can be developed as per material viscosity and production requirements.
